What Are the Differences Between Helical Gear & Spur Gear?

Editor: Aniket Pandey on Sep 10,2025

Imagine you put two gears side by side with one looking simple with straight teeth, whereas the other has slanted teeth that cross at an angle. Both the gears are moving smoothly when they rotate, but their functioning is completely different. These differences are something that people do not understand between helical gear vs spur gear.

Even though, most people want to know the difference between spur gears and helical gears, but are unsure which one is better between spur gear and helical gear for a machine.

The thing is both the gear types have their strengths and weaknesses, and in this blog, you will learn everything about it.

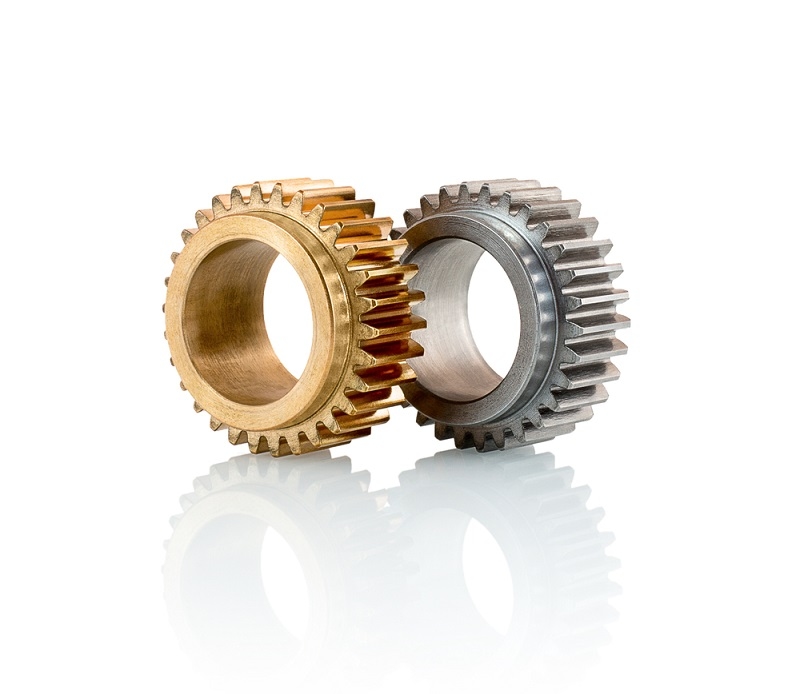

What Are Spur Gears?

Spur gears are the oldest and most common type of gear. Their design is straightforward, with teeth cut straight along the edge of the wheel. When they rotate, the teeth connect directly with the teeth of another gear.

This is because the design is simple, spur gears are very easy to make. They are also less costly compared to helical gears. You’ll often find them inside clocks, household devices, and machines that don’t need to carry heavy loads.

However, spur gears are not perfect. Since the teeth meet all at once, they create noise and vibration. This makes them less suitable for machines that must run quietly or smoothly at high speeds.

Advantages and Disadvantages of Spur Gears

Spur gears still remain to one of the most used ones around the world because of the following benefits that it offers:

• The simple structure of spur gear makes it easy for designing and maintaining the gear.
• It is a low cost option when compared to other available gear types in the market.
• Spur gears offer extremely high efficiency while following low and medium speeds.
• It is reliable for small machines and completing lighter tasks.

Like every good thing, there are some disadvantages of spur gears as well that are listed in the following points:

• Noisy at high speeds due to sudden tooth contact.
• Limited to lower speed applications.
• Can wear quickly under heavy loads.
• Generate vibration during operation.
• Not suitable for transmitting motion between non-parallel shafts.

What Are Helical Gears?

You will notice that helical gears look different from the first glance. Instead of straight teeth, the teeth in helical gears are cut at an angle. This small change can massively make a big difference in how these gears function.

When helical gears rotate, the angled teeth meet gradually instead of suddenly. This results in quieter and smoother operation. They can also handle more load than spur gears, making them ideal for bigger or faster machines.

Helical gears are often used in car gearboxes, elevators, and industrial equipment. But their advantages come with a cost. They are more expensive to manufacture, and the angled teeth create sideways forces that need stronger bearings.

Advantages and Disadvantages of Helical Gears

When compared to spur gears, helical gears can offer you various benefits which are listed in the following points:

• Smooth and quiet operation even at higher speeds.
• It has the ability to handle heavy tasks as it can take much more stress compared to spur gears.
• Helical gears have a longer lifespan because the contact between teeth is gradual and continuous.
• These gears are suitable for complex machines requiring strength and stability.

Now that you know the benefits of helical gears, it is essential for you to understand its drawbacks as well, which are listed in the following points:

• More expensive to manufacture than spur gears.
• Produce axial thrust that needs extra bearings.
• Efficiency is lower due to sliding contact.
• Generate more heat during operation.
• Require proper lubrication to avoid wear and damage.

Must Read: Top Motorcycle Security Gear for Disc Lock and Alarm Safety

Key Differences Between Spur Gear and Helical Gear

When comparing spur gear vs helical gear, it helps to look at their main differences.

1. Teeth Design

• Spur gears have straight teeth that are aligned with the axis.
• Helical gears have angled teeth cut diagonally across the gear.

2. Noise and Smoothness

• Spur gears are louder because teeth engage all at once.
• Helical gears are quieter because teeth engage gradually.

3. Load Capacity

• Spur gears work best for light to medium loads.
• Helical gears are stronger and handle heavier loads easily.

4. Efficiency

• Spur gears are efficient at lower speeds.
• Helical gears maintain efficiency at higher speeds.

5. Cost

• Spur gears are cheaper to design and build.
• Helical gears are more costly but provide better performance.

Are Helical Gears Stronger than Spur Gears

If you are still confused and thinking are helical gears stronger than spur gears? The answer completely depends on your requirements and the machine you have at your disposal.

• Spur gears are better when cost and simplicity matter most.
• Helical gears are better when quiet operation is important.
• Spur gears suit small machines with light loads.
• Helical gears suit larger machines with heavy loads.

There is no universal “better” choice. The right gear is the one that matches the task.

Recapping Differences Between Spur Gear vs Helical Gear

To make the difference between spur and helical gears easy to remember, here’s a quick recap:

• Spur gears are straight in structure, simple, and much cheaper than the helical gears, which are also angled and strong.
• Spur gears are ideal for light-duty machines, whereas the helical gears are perfect for performing heavy duty tasks.

How to Choose the Right Gear for You?

If you are still confused between spur and helical gears, it completely depends on your requirements. There are several factors that you need to consider such as the cost, load, and noise.

In case your goal is to save money and keep things simple, opting for spur gears should be your choice. However, if you want a machine that offers smooth performance and durability even under immense pressure, the best choice for you will be helical gears.

Both these types of gears are useful and essential, but your needs are what define your decision to select the right one.

Top Pick: Best Waterproof Motorcycle Luggage Picks for U.S. Riders

Conclusion

The debate of helical gear vs spur gear is not about finding one winner. Instead, it is about knowing their unique roles. Spur gears are simple, affordable, and perfect for light machines. Helical gears are stronger, quieter, and better for heavy loads and high speeds. Understanding the difference between spur and helical gears helps anyone choose wisely. So, the answer to which is better spur or helical gear depends only on the machine’s purpose.
